• Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.
• Advanced optimization
Unlock the potential in your initiatives and deliver real-time insights with this density-optimized server built for AI. Experience faster time-to-value with 4x AMD Instinct MI300X accelerators and Dell Smart Cooling technology.
• Accelerate your performance
Rapidly develop, train and deploy large machine learning models. Accelerate complex HPC applications and drive a wide range of complex processing needs. XE9640 delivers outstanding performance using Intel® CPUs and new Intel® Data Center Max Series GPUs.
• Break through boundaries with two 4th generation Intel Xeon processors and 4x AMD Instinct MI300X accelerators interconnected with Xe Link or 4x AMD Instinct MI300X accelerators

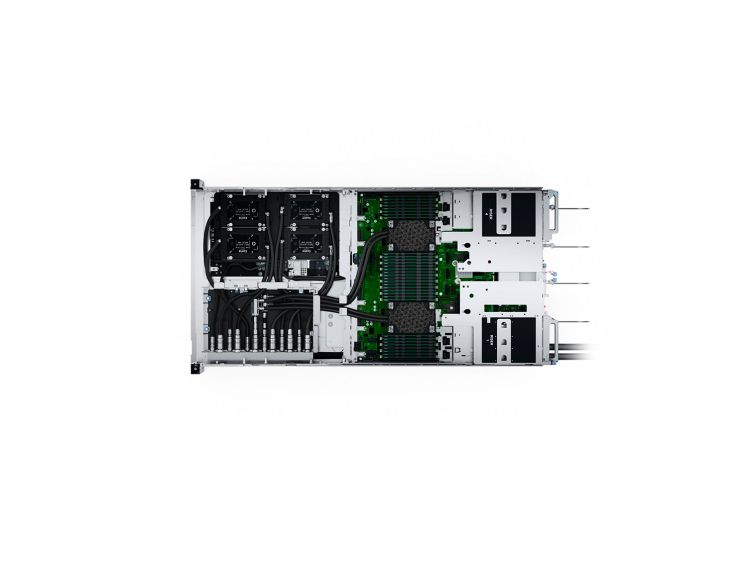

• Increase performance and speed with liquid cooled CPUs and GPUs
• Be more efficient with a slim 2U form factor and rack installation for high-density deployments
• Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
• Accelerated I/O throughput
• Deploy latest generation technologies including DDR5, PCIe Gen 5.0, and NVMe SSDs to push the boundaries of
data flow and computing possibilities.
• Up to 10 front-facing PCIe Gen 5 slots and up to 16 drives enable optimal expansion for high-performance realtime AI operations.
• Dell Validated Designs for Generative AI and comprehensive Dell Services offerings take the guesswork of out
infrastructure and workflow integration
| Processor | Two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor |
| Operating System | RedHat® Enterprise Linux |
| Chipset | Intel® C741 chipset |
| Accelerator | 4x AMD Instinct MI300X accelerators fully interconnected with AMD Infinity fabric. |
| Memory | Only 16 DIMM slots are supported out of 32 DIMMs (with 8 DIMMs per processor) for XE9640 Intel® GPU supported systems. RDIMM max 1TB |
| Storage controllers | Up to 4 x 2.5-inch NVMe SSD drives max 61.44 TB |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 HVDC redundant, hot swap |
| Cooling Options | • Liquid Cooling with internal Manifold |
| Form Factor | 2U Rack Server |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
| Bezel | Optional LCD bezel or security bezel |

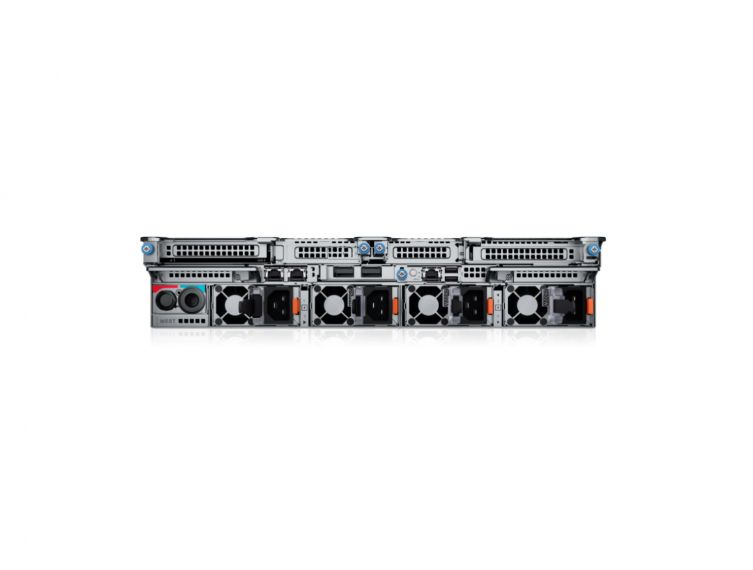

| Ports | Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x RJ45 iDRAC9 ethernet port |
| Dimensions | • Height — 3.41 inches (86.8 mm) • Width — 18.97 inches (482 mm) • Depth — 36.47 inches (926.5 mm) with bezel • Weight — 95.23 lbs (43.2 kg) |
