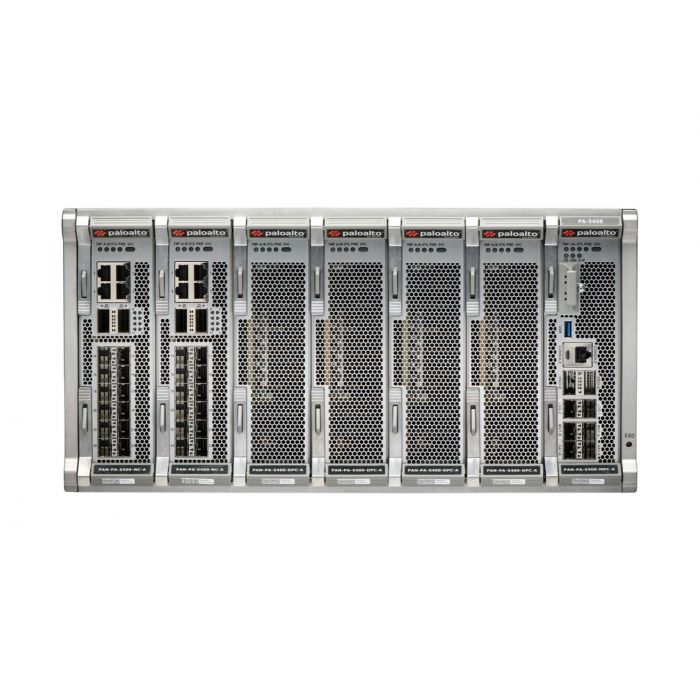

Palo Alto Next-Generation Firewall PA 5450

PAN-PA-5450-AC-SYS
Item Condition : Brand New

Earn 91,710 points when you buy me!

Hurry! Other 2 people are watching this product
SKU
Palo-Alto-Next-Generation-Firewall-PA-5450
Add a Review
Be the first to review this product
Special Price $91,710.99 Regular Price $100,044.99
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 2 people are watching this product

The Palo Alto Networks PA-5450 ML-Powered NextGeneration Firewall (NGFW) platform is designed for hyperscale data center, internet edge, and campus segmentation deployments. Delivering incredible performance—152 Gbps of Threat Prevention throughput with security services enabled—it is based on a scalable, modular design that enables you to increase performance as your needs increase. The PA-5450 offers simplicity defined by a single-system approach to management and licensing.

Details

PA-5450: Ultimate Performance for Enterprise & Service Provider Security

The Palo Alto Networks **PA-5450 Next-Generation Firewalls** empower enterprise-scale organizations and service providers to deploy robust security in demanding, **high-performance environments** like large data centers and high-bandwidth network perimeters. Designed for growing throughput needs, these systems offer exceptional performance and prevention capabilities to stop advanced cyberattacks, including threats hidden in encrypted traffic.

Built to maximize security-processing resource utilization and automatically scale, the PA-5450 offers simplicity through its single-system approach to management and licensing.

Palo Alto PA-5450 Performance

Advanced Modular Architecture

The PA-5450 is powered by a **scalable architecture** that intelligently distributes processing demands across three subsystems, each with massive computing power and dedicated memory, for networking, security, and management tasks.

  • **Network Processing Card (NPC):** Dedicated to all packet-processing tasks, including networking, traffic classification, and threat prevention. Each NPC features between 64 and 144 processing cores, delivering up to 70 Gbps per NPC. Throughput scales by adding new NPCs, automatically optimizing resource use.
Palo Alto PA-5450 Architecture

Unique Single-Pass Architecture for Efficient Packet Processing

  • Performs networking, policy lookup, application decoding, and signature matching for all threats and content in a **single pass**, significantly reducing processing overhead.
  • Avoids introducing latency by scanning traffic for all signatures in a single pass using stream-based, uniform signature matching.
  • Enables consistent and predictable performance even when multiple security subscriptions are enabled.
Palo Alto PA-5450 Single-Pass

Seamless SD-WAN Functionality

  • Allows for easy **SD-WAN adoption** by simply enabling it on your existing firewalls.
  • Enables secure SD-WAN implementation, natively integrated with industry-leading security.
  • Delivers an exceptional end-user experience by minimizing latency, jitter, and packet loss.
Palo Alto PA-5450 SD-WAN
Tech Specs

Tech Specs

expert_image
Still have Questions?
Call +1 833 631 7912

PA-5450 Performance and Capacities

  • Firewall throughput (HTTP/appmix): 200/200 Gbps
  • Threat Prevention throughput (HTTP/appmix): 189 Gbps
  • IPsec VPN throughput: 85 Gbps
  • Max sessions: 100M
  • New sessions per second: 3.6M
  • Virtual systems (base/max): 25/225

Manufacturing Number

  • MFG Part Number: PAN-PA-5450

PA-5260 Networking Features

  • Interface Modes: L2, L3, tap, virtual wire (transparent mode)
  • Routing: OSPFv2/v3 with graceful restart, BGP with graceful restart, Policy-based forwarding, Point-to-point protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment, Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3, Bidirectional Forwarding Detection (BFD)
  • SD-WAN: Path quality measurement (jitter, packet loss, latency), Initial path selection (PBF), Dynamic path change
  • IPv6: L2, L3, tap, virtual wire (transparent mode), Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption, SLAAC
  • IPsec VPN: Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication), Encryption: 3DES, AES (128-bit, 192-bit, 256-bit), Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512, GlobalProtect large-scale VPN for simplified configuration and management
  • VLANs: 802.1Q VLAN tags per device/per interface: 4,094/4,094, Aggregate interfaces (802.3ad), LACP
  • Network Address Translation: NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation), NAT64, NPTv6, Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
  • High Availability Modes: active/active, active/passive, Failure detection: path monitoring, interface monitoring
  • Mobile Network Infrastructure: 5G Security, GTP Security, SCTP Security

PA-5450 Hardware Specifications

  • I/O: 100/1000/10G Cu (4), 1G/10G SFP/SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs per system; 2 NCs require 2 or more DPCs installed
  • Management I/O: SFP/SFP+ MGT (2), SFP/SFP+ HA1 (2), HSCI HA2/HA3 QSFP+/QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1)
  • Storage Capacity: 480 GB SSD, RAID1, system storage, 4 TB SSD, log storage (optional)
  • Power Supply (Avg/Max Power Consumption): -
  • Max BTU/hr: 8,828
  • Power Supplies (Base/Max): 2/4
  • AC Input Voltage (Input Hz): 100–120 VAC & 200–240 VAC (50–60 Hz)
  • AC Power Supply Output: 2,200 watts/power supply
  • Max Current Consumption: AC: 100–120 VAC, ~14 A max. per input; 200–240 VAC, ~12.5 A max. per input; DC: 48–60 VDC, 52 A max. per input
  • Max Inrush Current: AC: 35 A @ 230 VAC, 35 A @ 120 VAC; DC: 50 A @ 72 VDC; DC: 200 A @ 72 VDC
  • Mean Time Between Failure (MTBF): Configuration dependent; contact your Palo Alto Networks representative for MTBF details.

Rack Mount (Dimensions)

  • 5U, 19” standard rack (8.75” H x 30.25” D x 17.38” W)

Safety

  • cTUVus, CB

EMI

  • FCC Class A, CE Class A, VCCI Class A, KCC Class A, BSMI Class A

Environment

  • Operating temperature: 32° to 122° F, 0° to 50° C
  • Non-operating temperature: ‐4° to 158° F, ‐20° to 70° C
