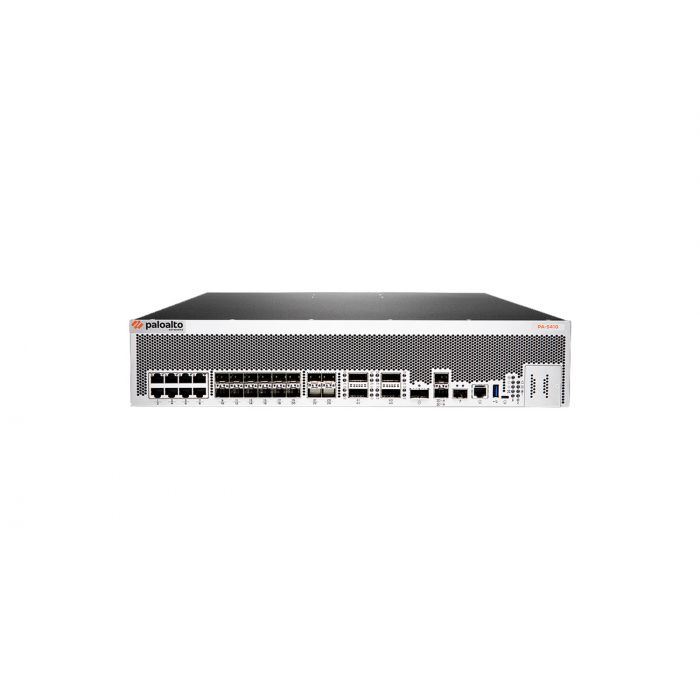

Palo Alto Next-Generation Firewall PA 5410

PAN-PA-5410-AC
Item Condition : Brand New

Earn 117,788 points when you buy me!

Hurry! Other 2 people are watching this product
SKU
Palo-Alto-Next-Generation-Firewall-PA-5410
$117,788.99
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 2 people are watching this product

The PA-5410 is part of the PA-5400 Series ML-Powered NGFWs (Next-Generation Firewalls). It is recommended for use in high-speed data centers and internet gateways. The PA-5410 is ideal for securing air-gapped or closed environments. The PA-5410 can be used as a standalone device or in a high-availability (HA) pair.

Details

Powerful Network Security for High-Speed Environments

The PA-5410 is a powerful network security appliance belonging to the PA-5400 Series by Palo Alto Networks. It's designed to provide advanced security and threat prevention for a wide range of network environments, specifically excelling in high-speed data centers and internet gateways with demanding traffic volumes.

With its dedicated processing power and memory, the PA-5410 efficiently handles large amounts of network traffic, including encrypted data, ensuring optimal security and threat prevention without compromising performance.

Palo Alto PA-5410 Firewall

Advanced Encrypted Traffic Handling and Robust Security Features

  • One of the key features of the PA-5410 is its ability to effectively handle encrypted traffic. It utilizes advanced decryption capabilities to inspect encrypted traffic, ensuring no malicious content or threats are hidden within encrypted communications.
  • In addition to robust threat prevention, the PA-5410 offers a range of security features including firewalling, intrusion prevention, URL filtering, and application control, allowing organizations to enforce security policies and control access.
Palo Alto PA-5410 Encrypted Traffic

AI-Powered Threat Detection and Resilient Deployment

  • The PA-5410 incorporates machine learning and artificial intelligence technologies to enhance its threat detection capabilities, continuously analyzing network and threat data to identify and block sophisticated threats in real-time.
  • It can be deployed as a standalone device or in a high-availability (HA) pair for redundancy and failover, ensuring uninterrupted network security and continuous protection.
Palo Alto PA-5410 Deployment

Ideal for Air-Gapped and Closed Environments

This appliance is particularly well-suited for air-gapped or closed environments where security is of utmost importance. By deploying the PA-5410 in such environments, organizations can ensure that their critical systems and sensitive data remain protected from internal and external threats.

Palo Alto PA-5410 Air-Gapped
Tech Specs

Tech Specs

expert_image
Still have Questions?
Call +1 833 631 7912

PA-5410 Performance and Capacities

  • Firewall Throughput (HTTP/appmix): 52 Gbps
  • Threat Prevention Throughput: 35 Gbps
  • IPsec VPN Throughput: 20 Gbps
  • Max Concurrent Sessions: 5M
  • New Sessions per Second: 270,000
  • Virtual Systems (Base/Max): 10/20

Manufacturing Number

  • MFG Part Number: PAN-PA-5410

PA-5410 Networking Features

  • Interface Modes: L2, L3, tap, virtual wire (transparent mode)
  • Routing: OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing, Policy-based forwarding, Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment, Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3, Bidirectional Forwarding Detection (BFD)
  • SD-WAN: Path quality measurement (jitter, packet loss, latency), Initial path selection (PBF), Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
  • IPv6: L2, L3, tap, virtual wire (transparent mode), Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption, SLAAC
  • IPsec and SSL VPN: Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication), Encryption: 3DES, AES (128-bit, 192-bit, 256-bit), Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512, GlobalProtect Large Scale VPN for simplified configuration and management*, Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals*
  • VLANs: 802.1Q VLAN tags per device/per interface: 4,094/4,094, Aggregate interfaces (802.3ad), LACP
  • Network Address Translation: NAT modes (IPv4): static IP, dynamic IP, Dynamic IP and Port (port address translation), NAT64, NPTv6, Additional NAT features: dynamic IP reservation, tunable Dynamic IP and Port oversubscription
  • High Availability Modes: active/active, active/passive, HA clustering
  • Failure detection: path monitoring, interface monitoring
  • Mobile Network Infrastructure†: 5G Security, GTP Security, SCTP Security

PA-5410 Hardware Specifications

  • I/O: 1G/2.5G/5G/10G (8), 1G/10G SFP/SFP+ (12), 1G/10G/25G SFP/SFP+/SFP28 (4), 40G/100G QSFP+/QSFP28 (4)
  • Management I/O: 1G/10G SFP/SFP+ out-of-band management port (1), 1G/10G SFP/SFP+ high availability (2), 40G QSFP+ high availability (1), RJ-45 console port (1), Micro USB
  • Storage Capacity: 480 GB SSD pair, system storage
  • Power Supply (Avg/Max Power Consumption): 630/760 W
  • Max BTU/hr: 1638
  • Input Voltage Frequency: 100–240 VAC (50–60 Hz)
  • Max Current Consumption: AC: 7 A @ 100 VAC, 3 A @ 240 VAC
  • Mean Time Between Failure (MTBF): 22 years

Rack Mount (Dimensions)

  • 2U, 19" standard rack (3.45" H x 22.5" D x 17.34" W)

Weight (Standalone Device/As Shipped)

  • 35.2 lbs/48.8 lbs

Safety

  • cTUVus, CB

EMI

  • FCC Class A, CE Class A, VCCI Class A

Environment

  • Operating temperature: 32°F to 122°F, 0°C to 50°C
  • Nonoperating temperature: -4°F to 158°F, -20°C to 70°C
  • Humidity tolerance: 10% to 90%
  • Maximum altitude: 10,000 ft/3,048 m
  • Airflow: front to back
