• High-speed performance with NVMe interface.
• Versatile capacities to meet different storage needs.
• Emphasis on data security with advanced encryption.
Virtualized environments, media streaming, cloud-based infrastructures and a more distributed workforce need continuous access to that data — and they need it fast. Ceph Storage can help you manage that growth.
Based on TLC 3D NAND technology, the new Micron 7450 series of NVMe SSDs is designed for next-gen autonomous cars and the IIoT.

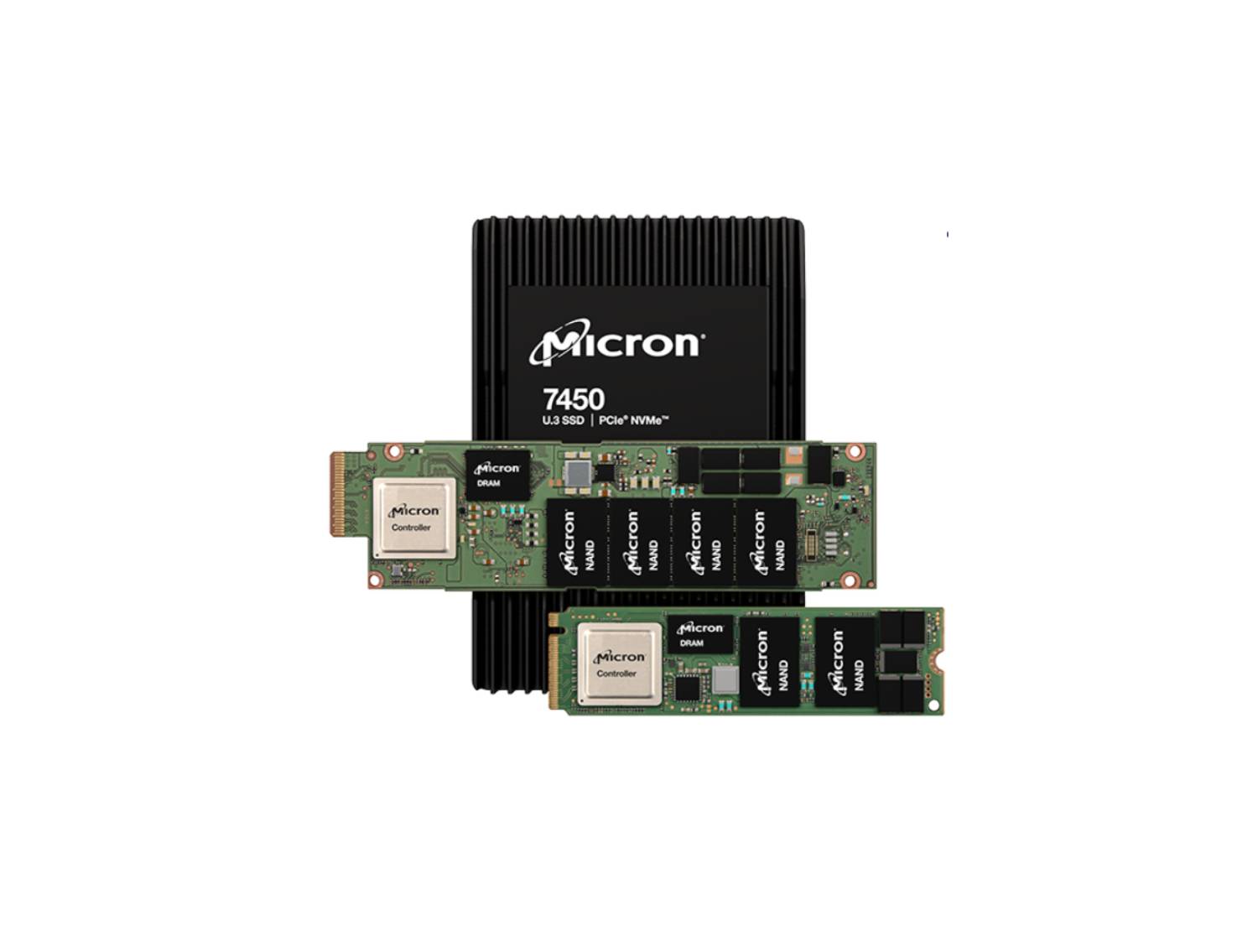

The Micron 7450 SSD with NVMe™ is the world’s most advanced 176-layer NAND data center SSD, delivering exceptional latency and PCIe Gen4 with extensive deployment options.
The Micron 7450 SSD enables flexible cloud and data center designs to support a wide variety of workloads.
The 7450 SSD is built on Micron’s state-of-the-art, 176-layer NAND. Available in the broadest range of PCIe® Gen4 SSD form factors enabling you to use the Micron 7450 for all major platform functions (boot, cache and main data storage). The Micron 7450 SSD consistently delivers 2ms and lower latency for 99.9999% QoS1 and offers next-generation security features such as Micron’s unique Secure Execution Environment.2 It is designed for high-capacity SSD needs and includes a PCIe Gen4 M.2 22x80mm with power-loss protection model — specifically designed for server boot use.
Improves Storage Performance Across Data Center Workloads
The Micron 7450 SSD utilizes Micron's innovative 176-layer NAND, which combines the highest layer count with Micron CMOS-under-array technology and PCIe Gen4 to provide industry-leading performance,3 enabling faster booting and improved application responsiveness.
Enables Rapid, Reliable and Responsive Data Center Workloads
The Micron 7450 SSD consistently delivers 2ms and lower latency for 99.9999% QoS4 improving performance in databases such as Microsoft SQL Server, Oracle, MySQL, RocksDB, Cassandra and Aerospike.
| Part Number | MTFDKCC7T6TFR-1BC1ZABYYR | |
| Form Factor | U.3, M.2, E1.S |
| Interface | PCIe Gen4 |
| Capacities | Ranging from 400GB to 15.36TB, including a 7.68TB E1.S option |
| Controller | Micron Custom Controller |
| NAND Flash | 176-layer 3D NAND |
| Endurance | Varies based on capacity, with options for both read-intensive and write-intensive workloads |
| Power Consumption | Varies based on capacity and workload |
| Operating Temperature | 0°C to 70°C (internal) |
| Reliability | Mean Time Between Failures (MTBF) of 2 million hours |
| Warranty | 5-year limited warranty |
| Sequential Read Speed | Up to 7.2GB/s |
| Sequential Write Speed | Up to 5.5GB/s |
| Random Read IOPS | Up to 1.2 million IOPS |
| Random Write IOPS | Up to 330,000 IOPS |
| Latency | Less than 100µs |
| Power Loss Protection | Yes |
| Data Protection Features | AES 256-bit encryption, TCG Opal 2.0, and TCG Pyrite 2.0 |
| End-to-End Data Path Protection | Yes |
| SMART Support | Yes |
| TRIM Support | Yes |
| Advanced Power Management | Yes |
| Operating System Compatibility | Windows, Linux, and other major operating systems |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
