• PCIe 3.0 x4, NVMe interface.
• U.2 15mm form factor.
• 375 GB storage capacity.

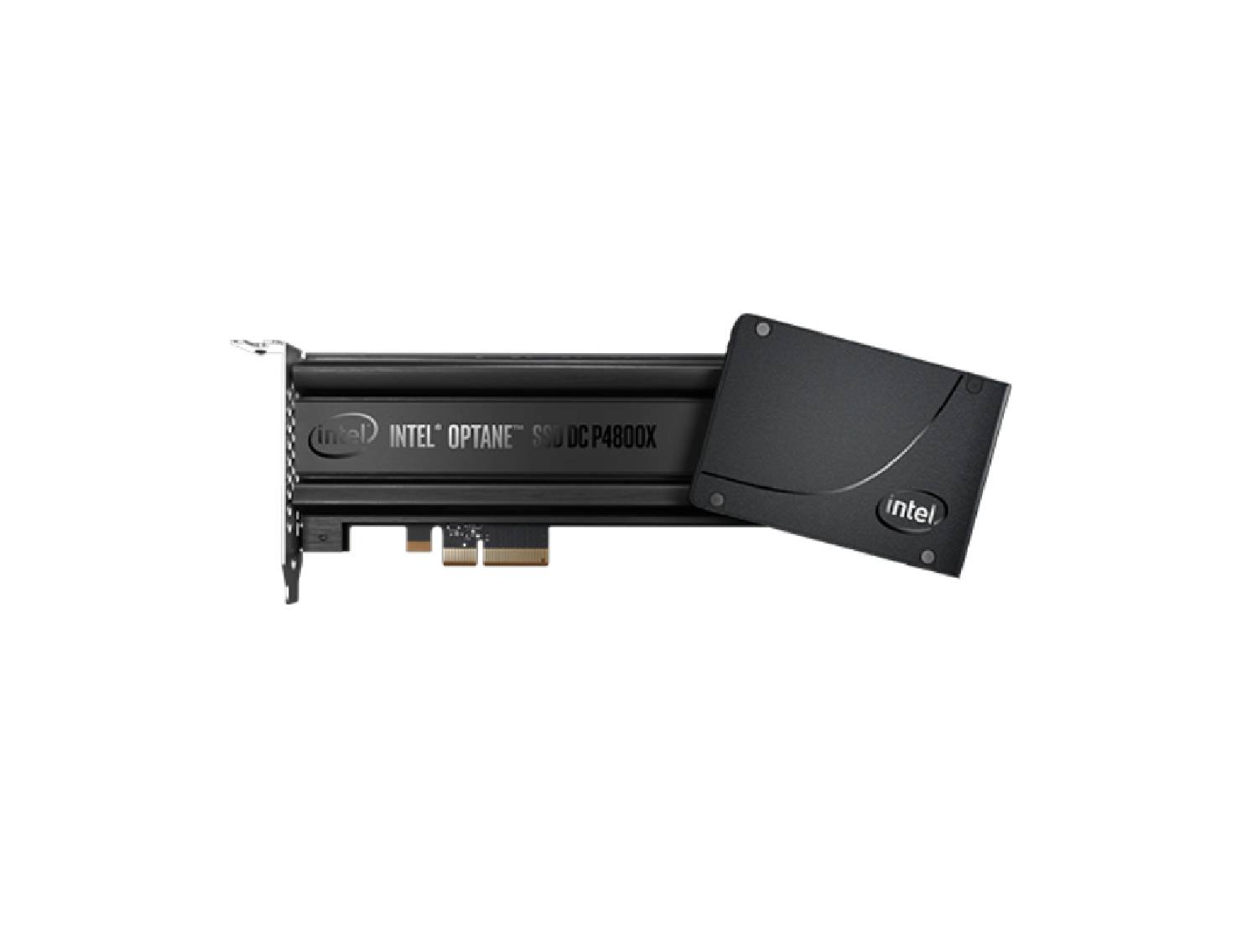

Solve the most demanding storage and memory challenges with the Intel® Optane™ SSD DC P4800X series.
Every day, the amount of data created across the world is exploding to new levels. Enterprises and cloud service providers thrive on this data to make critical decisions, gain new insights from the data, and differentiate services. But, today’s current storage technologies leave a gap in data storage tiers. DRAM is far too expensive to scale and while NAND has the capacity and cost structure to scale, it lacks sufficient performance to function in the memory space. To address the gap, a storage solution that behaves like system memory is needed.
The Intel® Optane™ SSD DC P4800X series is the first product to combine the attributes of memory and storage. With an industry-leading combination of high throughput, low latency, high QoS, and high endurance, this innovative solution is optimized to break through data access bottlenecks by providing a new data storage tier. The DC P4800X accelerates applications with fast caching and fast storage to increase scale per server and reduce transaction costs for latency sensitive workloads. In addition, the Intel® Optane™ DC P4800X enables data centers to deploy bigger and more affordable datasets to gain new insights from large memory pools.
Realize breakthrough application performance with the Intel® Optane™ DC P4800X. It is designed to deliver up to 6x faster performance at low queue depth workloads,1 exhibiting extremely high throughput for single accesses and super low latency. The Intel® Optane™ DC P4800X can reach as many as 550,000 IOPS at a queue depth of 16.2 This new technology is perfectly suited to accelerate enterprise applications to new, breakthrough levels of performance.
TWith a new data storage tier created by Intel® Optane™ technology, data centers can consistently realize amazing response times under any workload. With NAND-based SSDs, random write operations require an immense amount of background media management. These tasks can add significant delay to the read operations. The Intel® Optane™ SSD DC P4800X maintains consistent read response times regardless of the write throughput applied to the drive. Average read response times remain below <30μs while maintaining a 70/30 mixed read/write bandwidth of 2GB/s.
In an environment of fast growing data and ever demanding needs, data centers must deploy solutions that enable predictably fast service. The Intel® Optane™ DC P4800X is ideal for critical applications with demanding latency requirements. Its 99% read response time is up to 63x better than that of a high-endurance NAND SSD under random write workload.3 Optimized to minimize delays in data access times, the Intel® Optane™ DC P4800X results in faster time to insight for decision making.
Endurance affects the life expectancy and costs of enterprise SSDs. The DC P4800X is designed for high write environments, and can withstand intense write traffic that is typically demanded of memory. With its extremely high endurance, the life of the DC P4800X is extended, making it suitable for write-intensive applications such as online transaction processing, high performance computing, write caching, boot, and logging.
| Capacity | 375 GB |
| Status | Launched |
| Launch Date | Q3'17 |
| Sequential Bandwidth - 100% Read (up to) | 2400 MB/s |
| Sequential Bandwidth - 100% Write (up to) | 2000 MB/s |
| Random Read (100% Span) | 550000 IOPS (4K Blocks) |
| Random Write (100% Span) | 550000 IOPS (4K Blocks) |
| Power - Active | 18 W |
| Power - Idle | 5 W |
| Vibration - Operating | 2.17 GRMS |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1000 G/0.5 msec, half sine |
| Operating Temperature Range | 0°C to 70°C |
| Operating Temperature (Maximum) | 70 °C |
| Operating Temperature (Minimum) | 0 °C |
| Endurance Rating (Lifetime Writes) | 20.5 PBW (30DWPD), 41.0 PBW (60DWPD) |
| Mean Time Between Failures (MTBF) | 2 million hours |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
| Warranty Period | 5 yrs |
| Form Factor | U.2 15mm |
| Interface | PCIe 3.0 x4, NVMe |
| Enhanced Power Loss Data Protection | Yes |
| Hardware Encryption | AES 256 bit |
| High Endurance Technology (HET) | Yes |
| Temperature Monitoring and Logging | Yes |
| End-to-End Data Protection | Yes |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Remote Secure Erase | No |
