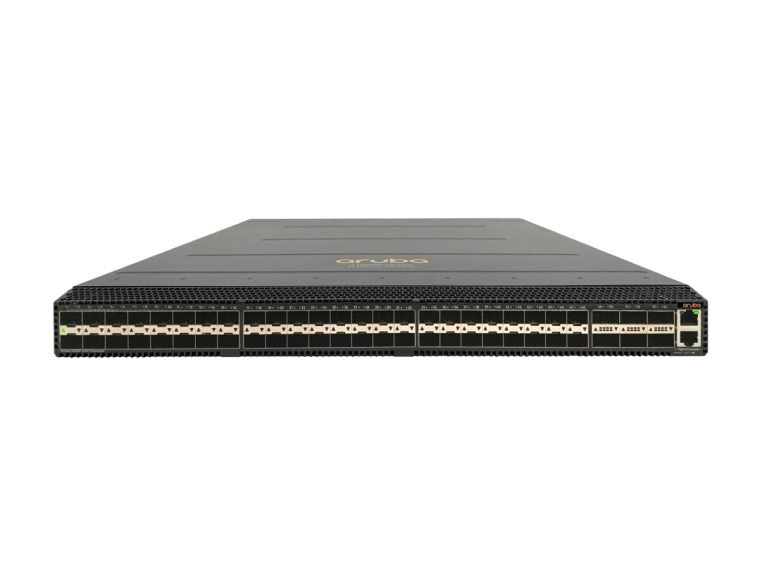

HPE Aruba CX 10000‑48Y6C Back‑to‑Front Switch Bundle

HPE Aruba Networking CX 10000‑48Y6C Distributed Services Back‑to‑Front Switch Bundle (R8P14A)

From

Special Price $38,806.99 Regular Price $55,639.00

Home
HPE Aruba Networking CX 10000‑48Y6C Distributed Services Back‑to‑Front Switch Bundle (R8P14A)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sale

See all specs

Have questions about this purchase?

Chat with Uvation Assistant

Ask An Expert → +1 833 631 7912 (North America)

R8P14A

Item Condition : Brand New

Earn 38,806 points when you buy me!

Hurry! Other 1 people are watching this product

SKU

HPE-10000-BF-BUNDLE-R8P14A

Add a Review

Be the first to review this product

Special Price $38,806.99 Regular Price $55,639.00

In stock

Hurry! Other 1 people are watching this product

High-performance, secure, and programmable 48-port 25/100 GbE switch with AMD Pensando DPU, back‑to‑front airflow, 6 hot-swappable fans and 2 power supplies.

Details

Improves Network Bandwidth and Performance

The HPE Aruba Networking CX 10000 Switch Series delivers scalable, high-performance distributed services. It eliminates the need to route traffic back and forth to centralized policy enforcement, simplifying service application at the network access edge.

With 3.6 Tbps bidirectional switching and 2000 Mpps forwarding, it meets today’s and tomorrow’s bandwidth demands with wire-speed Layer 2/3 performance.

Limit Security Appliance Sprawl and Cost

Eliminate centralized chokepoints with localized policy enforcement. CX 10000 minimizes appliance sprawl, lowers costs, and boosts performance by distributing security services directly at the data center edge.

It supports unified automation and security policy management across your infrastructure.

Aruba CX 10000 Zero Trust and Automation

Extend Zero Trust and Micro Segmentation

Extend Zero Trust security deeper into the data center. With 800G of distributed services per switch—NAT, encryption, telemetry, and micro-segmentation—the CX 10000 helps enforce east-west security at every port.

Built with AMD Pensando PSM for scalable policy control, it supports all host types while simplifying operations and reducing risk.

Simplify Operations

Fabric Composer automates security policy and configuration across the switching fabric. REST API integration supports NPM, SIEM/SOAR, XDR, and other monitoring platforms.

Aruba’s modern AOS-CX operating system simplifies complex tasks through database-driven automation and real-time analytics.

Tech Specs

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Differentiator Bundle Includes

48 x 25Gb ports (SFP/+/28), 6 x 100Gb ports (QSFP+/28)
6x R8R54A Back-to-Front fan
2x R8R52A Back-to-Front 800W 100–240VAC power supply
1U - Height

Power Consumption

753W (maximum)
550W (typical)
400W (idle)

Notes

Max: 100% line rate traffic, all ports populated
Typical: 50% line rate traffic, all ports populated
Idle: No traffic or modules

Heat Dissipation

1,876 BTU/hr

Input Voltage

100-240 VAC

Ports

48 SFP28
6 QSFP28

Latency

<1 µs (without redirect)
<5 µs (with redirect)

Routing Capabilities

Static (IPv4/IPv6)
RIPv2, RIPng
OSPF, OSPFv3
BGP-4, MP-BGP with IPv6
PBR, ECMP, GRE

Switching Capacity

1.8 Tbps (3.6 Tbps full-duplex)

Stacking Capabilities

Throughput

3.6 Tbps bidirectional switching
2000 Mpps forwarding

Memory and Processor

CPU: 2.9 GHz
32 GB (2x16 GB) SODIMM
64 GB SSD
32 MB SPI Flash (BIOS)
64 MB SPI Flash (SVOS)
Packet Buffer: 32 MB
DPU: 2x Pensando Elba 3 GHz

Power Supply Name

2x R8R51A (Front-to-Back)
2x R8R52A (Back-to-Front)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Management Features

CLI
REST API
SNMP
Fabric Composer
Multi-Edit
RJ-45 console port
USB micro console port
RJ-45 out-of-band management port

Warranty

1-year warranty. See the warranty duration.

Detailed Product Description

The HPE Aruba Networking CX 10000 Switch Series delivers a flexible and innovative approach to address the security performance, agility, and scalability demands of both traditional enterprise data centers and emerging distributed, edge, and collocated centers of data.
