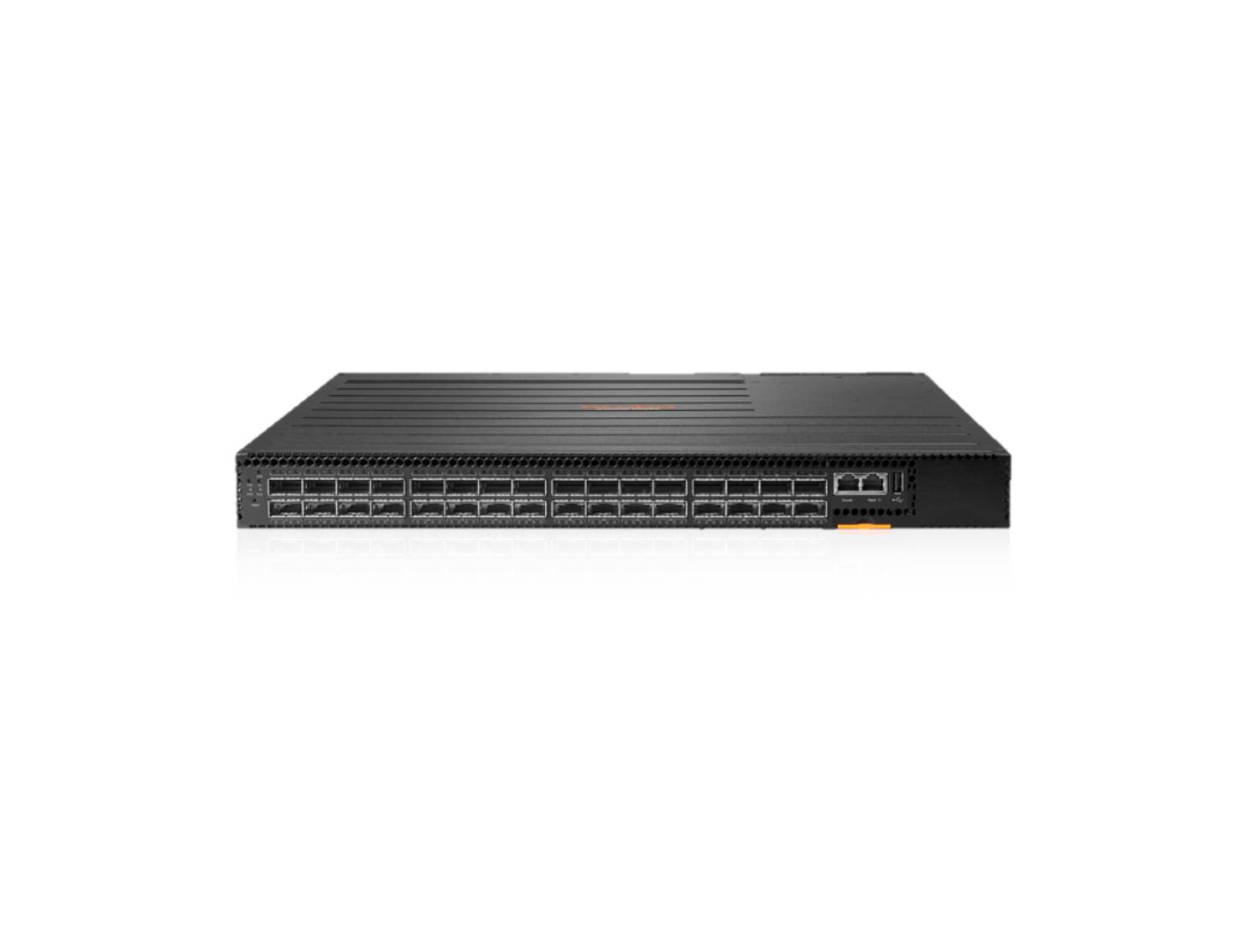

HPE Aruba Networking 8320 32p 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle

System Switching Capacity

• 2.5 Tbps

Power Supply

• Field-replaceable, hot-swappable, up to 2 power supplies
• Bundles (JL479A, JL579A, JL581A) include 2 power supplies

I/O Ports and Slots

• Supports 32 ports of 40G for use with QSFP+ transceivers
• Optional 4x10G breakout cables

Fans

• Field-replaceable, hot-swappable, up to 5 fans
• Bundles (JL479A, JL579A, JL581A) include 5 fans

IPv4 / IPv6 Host Tables

• IPv4: 120,000
• IPv6: 52,000

CPU

• 2.4GHz

Memory and Flash

• 16GB RAM
• 64GB SSD
• 8GB Flash

Packet Buffer

• -

Physical Characteristics

Dimensions
• 17.26 (w) x 20.28 (d) x 1.71 (h) in
• (438 x 515 x 43.5 mm)

Configuration Weight
• 21.27 lb (9.7 kg)

Environmental

Operating Temperature
• 0°C to 40°C (32°F to 104°F) up to 10,000 ft (3km)

Operating Relative Humidity
• 5% to 95% at 40°C (104°F) non-condensing

Non-Operating
• -40°C to 70°C (-40°F to 158°F) up to 15,000ft (4.6km)

Non-Operating Storage Relative Humidity
• 5% to 95% @ 65°C (149°F)

Max. Operating Altitude
• Up to 10,000ft (3.048 km)

Max Non-operating Altitude
• Up to 15,000ft (4.6km)

Primary Airflow
• -

Electrical Characteristics

Frequency Range
• 50–65Hz

Power Consumption (230 VAC)
• 310 W

AC Voltage
• 100–127 and 200–240 VAC (50 or 60Hz)

Mounting

• Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included)
• Horizontal surface mounting only

Recommended Support

Choose HPE Foundation Care for critical systems or HPE Proactive Care for premium hardware and software support for your Aruba solution. Consulting and deployment offerings are also available. Contact your HPE representative today for more information. Availability and terms of HPE Services vary by region.

Regulatory

• Product Compliance and Safety Datasheets
• Aruba and the Environment
