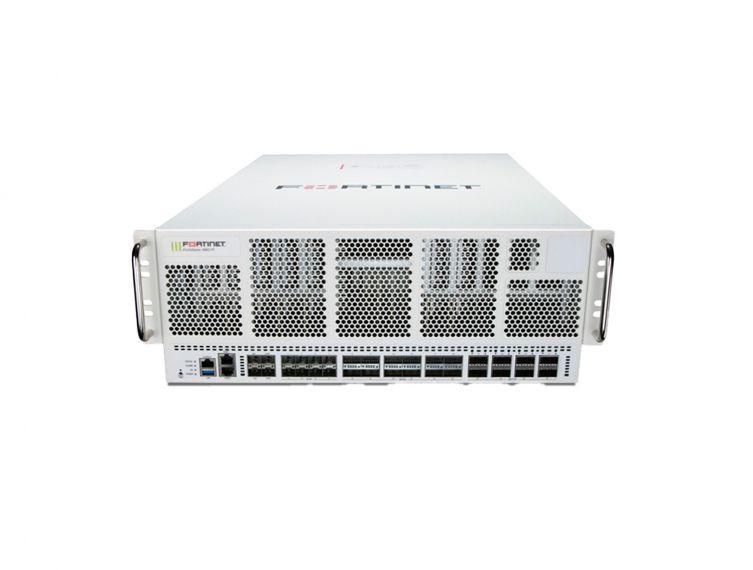

Fortinet FortiGate 4800F – Ultra‑High Throughput Hyperscale NGFW Appliance

Fortinet FortiGate 4800F – Ultra‑High Throughput Hyperscale NGFW Appliance

From
Special Price $307,800.00 Regular Price $342,000.00
compare favorite favorite
  • Home
  • Fortinet FortiGate 4800F – Ultra‑High Throughput Hyperscale NGFW Appliance
Fortinet FortiGate 4800F – Ultra‑High Throughput Hyperscale NGFW Appliance
Sale
See all specs
Have questions about this purchase?
Chat with Uvation Assistant
Rewards Banner

Fortinet FortiGate 4800F – Ultra‑High Throughput Hyperscale NGFW Appliance

FG-4800F
Item Condition : Brand New

Earn 307,800 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
FOT-FRT-4800F
Add a Review
Be the first to review this product
Special Price $307,800.00 Regular Price $342,000.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 1 people are watching this product

The FortiGate 4800F delivers unmatched hyperscale NGFW performance with up to 3.1 Tbps firewall throughput and 75 Gbps threat protection, built for large data centers and service providers

Details
Fortinet FortiGate 4800F Performance

Built for Enterprise-Scale Security

The Fortinet FortiGate 4800F is engineered for high-performance environments, delivering up to 320 Gbps firewall throughput and scalable security infrastructure for modern enterprises and service providers.

Fortinet FortiGate 4800F Throughput

Extreme Performance with Advanced Protection

With up to 80 Gbps IPS and 140 Gbps VPN throughput, the FortiGate 4800F handles up to 9 million new sessions/sec, powered by Fortinet’s dedicated security processors for accelerated performance and threat mitigation.

Fortinet FortiGate 4800F Threat Protection

Comprehensive Security & Visibility

FortiOS powers deep visibility, advanced web filtering, application control, and centralized management through FortiManager. Gain insight into user behavior, traffic patterns, and potential threats with built-in analytics and reporting.

Fortinet FortiGate 4800F Redundancy

High Availability & Flexible Deployment

Supports active-active or active-passive failover, VLAN segmentation, and virtual network instances. Features link aggregation and hot-swappable power supplies for resilient deployment across enterprise networks.

Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Product Number

  • FG‑4800F

Interfaces and Modules

  • 8× 400 GE/200 GE/100 GE/40 GE QSFP‑DD, QSFP56, QSFP28, QSFP+ slots
  • 12× 200 GE/100 GE/40 GE QSFP56, QSFP28, QSFP+ slots
  • 8× 50 GE/25 GE/10 GE/GE SFP56, SFP28, SFP+, SFP slots
  • 4× 50 GE/25 GE/10 GE/GE SFP + HA/AUX slots
  • 2× 10 GE/GE RJ45 management ports
  • 1× USB 3.0 port
  • 1× Console port
  • Trusted Platform Module (TPM): Yes
  • Included Transceivers: 2× SFP+ (SR 10 GE)

System Performance (Enterprise Mix)

  • IPS Throughput: 87 Gbps
  • NGFW Throughput: 77 Gbps
  • Threat Protection Throughput: 75 Gbps

Firewall Performance

  • IPv4 Throughput (UDPs 1518/512/64 byte): 3.1 / 3.1 / 0.93 Tbps
  • IPv6 Throughput: 3.1 / 3.1 / 0.93 Tbps
  • Latency (64 byte UDP): 3.6 μs
  • Packet Rate: 1,396 Mpps

Sessions & Policies

  • Concurrent TCP Sessions: 280 M / 1.8 B
  • New Sessions/sec: 915 k / 25 M
  • Firewall Policies: 200,000

VPN Performance

  • IPsec VPN Throughput: 800 Gbps
  • Gateway‑to‑Gateway Tunnels: 40,000
  • Client‑to‑Gateway Tunnels: 200,000
  • SSL‑VPN Throughput: 18 Gbps
  • Max SSL‑VPN Users: 30,000

SSL Inspection

  • Throughput: 63 Gbps (IPS, HTTPS)
  • CPS: 60,000
  • Concurrent Sessions: 30 M

Application Control

  • HTTP 64 K Throughput: 180 Gbps

CAPWAP Throughput

  • 112 Gbps (HTTP 64 K)

Scalability

  • Virtual Domains: 10 / 500
  • Max FortiSwitches: 300
  • Max FortiAPs: 8192 / 4096
  • Max FortiTokens: 20,000

High Availability

  • Active‑Active, Active‑Passive, Clustering

Dimensions & Weight

  • 175 × 435 × 663 mm (6.89 × 17.13 × 26.10 in)
  • Weight: 41.2 kg (90.8 lbs)

Power & Supply

  • Average Power: 1,602 W
  • Maximum Power: 1,918 W
  • AC Power: 200–240 V, 50/60 Hz, 7.99 A @ 240 V
  • Redundant Power Supplies: Yes, 2+2 hot‑swappable
  • 80Plus Efficiency Compliant

Cooling & Noise

  • Heat Dissipation: 6,544.9 BTU/h
  • Fan Tray: Hot‑swappable, Front‑to‑Back airflow
  • Noise Level: 63.8 dBA

Environment & Certifications

  • Operating Temp: 0–50 °C (32–122 °F)
  • Storage Temp: –35–70 °C (–31–158 °F)
  • Humidity: 10–90 % non‑condensing
  • Altitude: Up to 3,048 m (10,000 ft)
  • Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
  • Certifications: USGv6 / IPv6
