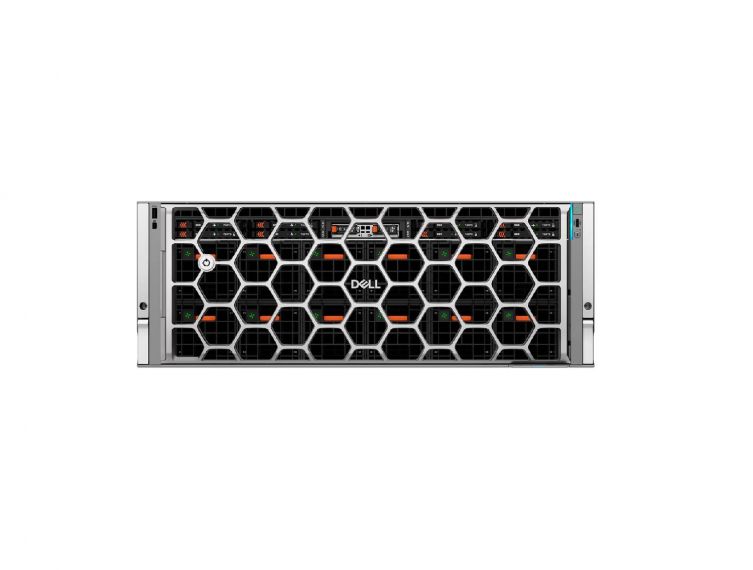

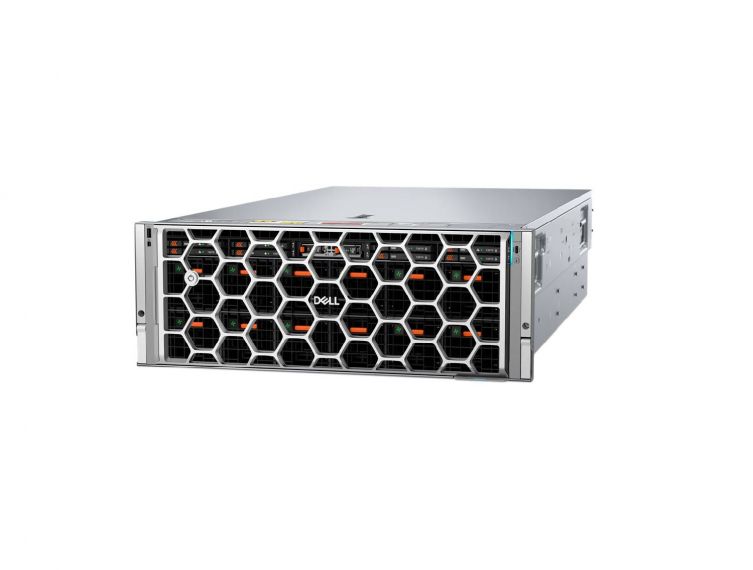

Dell PowerEdge AI Server XE7745 with 2xAMD EPYC 9005 Series Processor

Processor

• Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor

Operating System

• Canonical Ubuntu Server LTS
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMWare ESXi

Chipset

• AMD chipset

GPU Accelerators

• 8x PCIe Gen 5 x16 DW up to 600W or 16x PCIe Gen 5 x16 SW up to 75W

Memory

DIMM Speed
• Up to 6000 MT/s

Memory Type
• RDIMM

Memory Module Slots
• 24 DDR5 DIMM slot

Maximum RAM
• RDIMM 3.072 TB

Storage

Front Bays
• Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB

Mid Bay
• N/A

Rear Bay
• N/A

Storage Controllers

Internal Boot
• Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs

Internal controllers
• N/A

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt) (available with future releases)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• Secure Erase
• System Lockdown (requires iDRAC10 Enterprise or Datacenter) (available with future releases)
• TPM 2.0 FIPS, CC-TCG certified
• AMD Secure Memory Encryption (SME)
• AMD Secure Encrypted Virtualization (SEV)

Management

Embedded / At-the-Server
• iDRAC10*
• iDRAC Direct
• iDRAC RESTful API with Redfish

Tools

• Dell Repository Manager
• Dell System Update
• Enterprise Catalogs
• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI

Power Supplies

• 3200 W Titanium 200—240 VAC or 240 VDC

Fans

• Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray
• Up to twelve high performance (HPR) platinum grade fans installed on the front of the system

Ports

Network Options
• OCP NIC card 3.1

Front Ports
• 1 x USB 2.0 Type A port
• 1 x USB 2.0 Type A port (iDRAC/BMC Direct)
• 1 x Mini-DisplayPort (optional)

Rear Ports
• 1 x Dedicated ethernet port for iDRAC management
• 1 x VGA
• 2 x USB 3.1 Type A ports

Internal Ports
• 1 x USB 3.1 Type A port (optional)

Slots

• PCIe
• Up to 8 x 16 lane PCIe slots (in addition to 16 internal GPU PCIe slots)

Video Card
• 1 x VGA

Bezel

• Optional security bezel

Form Factor

• 4U rack server

Dimensions & Weight

Height
• 6.86 in. (174.3 mm)

Width
• 18.98 in. (482.00 mm)

Depth
• 35.42 in. (899.56 mm) with bezel
• 34.91 in. (886.73 mm) without bezel

Weight
• 151.02 lbs (68.5 Kg)

Rack Support

• Generic Tool-less stab-in sliding rail, Support for tool-less installation in 19" EIA-310-E compliant square hole and unthreaded round hole 4-post racks.
• Support for full extension of the system out of the rack to allow serviceability of key internal components.
