Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle (JL762A)

Aruba 6300M 48‑Port 1 GbE & 4‑Port SFP56 Power‑to‑Port Bundle (JL762A)

From

$9,113.99

Home
Aruba 6300M 48‑Port 1 GbE & 4‑Port SFP56 Power‑to‑Port Bundle (JL762A)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

See all specs

Have questions about this purchase?

Chat with Uvation Assistant

Ask An Expert → +1 833 631 7912 (North America)

JL762A

Item Condition : Brand New

Earn 9,113 points when you buy me!

Hurry! Other 2 people are watching this product

SKU

A6300M-48G-4SFP56-1PSU-JL762A

Add a Review

Be the first to review this product

$9,113.99

In stock

Hurry! Other 2 people are watching this product

A compact and efficient 1U Aruba CX 6300M switch with 48 1 GbE ports and 4 SFP56 uplinks, featuring back-to-front power-to-port airflow, redundant fan trays, single PSU bundle, Gen7 ASIC performance, VSF stacking, and AOS‑CX analytics.

Details

High Performance and Power

The HPE Aruba Networking CX 6300 Switch Series features a fully distributed Gen7 ASIC architecture delivering low latency, enhanced packet buffering, and adaptive power use. With wire-speed switching/routing and uplinks supporting up to 100 GbE, it supports 200–400 Gbps stacking throughput.

Smart Rate multi-gig Ethernet ports (1G/2.5G/5G/10G) with Class 4/6/8 PoE provide up to 2880W, enabling high-performance connectivity for access points and IoT. Layer 2 CX 6300L variants offer scalable, cost-effective options with static routing and stackable design.

Automation and Analytics

Gain real-time visibility with built-in analytics and a Time Series Database. The Aruba Network Analytics Engine (NAE) identifies and addresses system, network, and security issues via CLI, Python, or REST API.

AI insights in Aruba Central and Multi-Edit Software help automate configuration, ensure policy compliance, and simplify change deployment. The CX Mobile App enables one-touch stacking and import for continuous conformance validation.

Unified Management and Smarter Segmentation

Aruba CX 6300 is centrally managed via Aruba Central, offering AI tools and unified control. Dynamic Segmentation enforces identity-aware policies for users, devices, and apps across wired and wireless networks.

Advanced features include Layer 7 firewall, role-based access control, application recognition, and VXLAN to VRF mapping. Colorless ports and LMA reduce manual operations and speed up network changes.

HPE Aruba Data Center Networking Solution

Integrate CX 6300 switches with HPE’s broad IT infrastructure ecosystem, including HPE ProLiant, Nimble, Synergy, and GreenLake. These switches are ideal for complex data center environments and support deployment in HCI, SAP HANA, VMware, and HPC solutions.

Pre-engineered, ready-to-deploy configurations reduce setup time, risks, and costs while enhancing IT service delivery. Use the R9FXXX tracking SKUs for integrated deployments.

Tech Specs

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Power Consumption

Idle: 56W
100% Traffic Rate: 75W

Input Voltage

JL760A PSU: 100V–240V

Ports

48-port 10/100/1000 BaseT ports
4x 1G/10G/25G/50G* SFP ports
1x USB‑C Console Port
1x OOBM port
1x USB Type A Host port

Notes

50G capability is for use with 50G DACs for both interconnect and VSF stacking.
50G transceivers and DACs are not supported on S0E91A and S0X44A switch models.
QSFP to SFP56 DAC cable required for VSF stacking with other CX 6300F and CX 6300M switches.
VSF stacking not supported on 1G ports.

Latency

1Gbps: 2.28μSec
10Gbps: 1.46μSec
25Gbps: 1.90μSec
50Gbps: 3.49μSec

Switching & Stacking

Switching Capacity: 496 Gbps
Throughput: 369 Mpps
Stacking: Up to 10 switches per stack
Note: CX 6300L switches only stack with other CX 6300L switches

Memory and Processor

Quad Core Arm Cortex™ A72 @ 1.8GHz
8 GB DDR4, 32 GB eMMC
Shared Packet Buffer Memory: 8 MB, 16 MB, or 32 MB depending on model/config

Management Features

HPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

Warranty

Limited lifetime warranty. See the warranty duration.

Detailed Product Description

CX 6300M 48-port 1 GbE and 4-port SFP56 switch
Must select PSU Min1 / Max2 (680W JL086A, 1050W JL087A, 1600W JL670A, 1050W JL758A)
Includes 2 Fan Trays
1 PSU (included in this bundle)
1U - Height
Supports 1/10/25/50 G Transceivers

Weight

5.7 kg (1 PSU)
6.27 kg (2 PSU)

Dimensions

4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)

Models

HPE Aruba Networking

HPE Aruba Networking

HPE Aruba Networking 8400Xâ€32Y 32p 1/10/25G SFP/SFP+/SFP28 Module (JL687A)

Price

9113.99

Aruba 6300M 48‑Port 1 GbE & 4‑Port SFP56 Power‑to‑Port Bundle (JL762A)

Have questions about this purchase?

Aruba 6300M 48‑Port 1 GbE & 4‑Port SFP56 Power‑to‑Port Bundle (JL762A)

High Performance and Power

Automation and Analytics

Unified Management and Smarter Segmentation

HPE Aruba Data Center Networking Solution

Tech Specs & Customization

Power Consumption

Input Voltage

Ports

Notes

Latency

Switching & Stacking

Memory and Processor

Management Features

Warranty

Detailed Product Description

Weight

Dimensions

HPE Aruba Networking

Write Your Own Review

You're reviewing: Aruba 6300M 48‑Port 1 GbE & 4‑Port SFP56 Power‑to‑Port Bundle (JL762A)

Works Best Together With

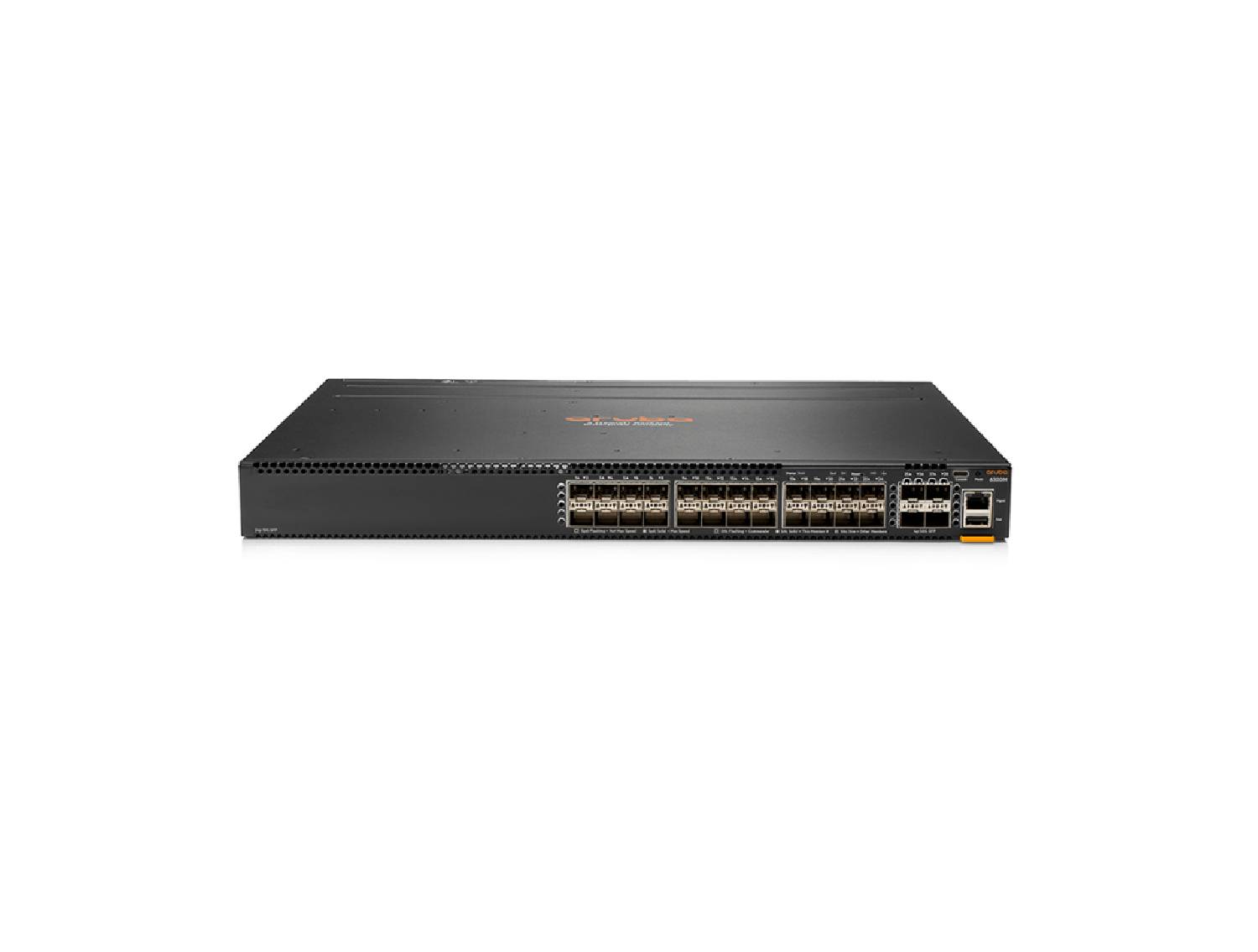

HPE Aruba Networking CX 6300F 24‑Port 1 GbE + 4‑Port SFP56 Switch (JL668A)

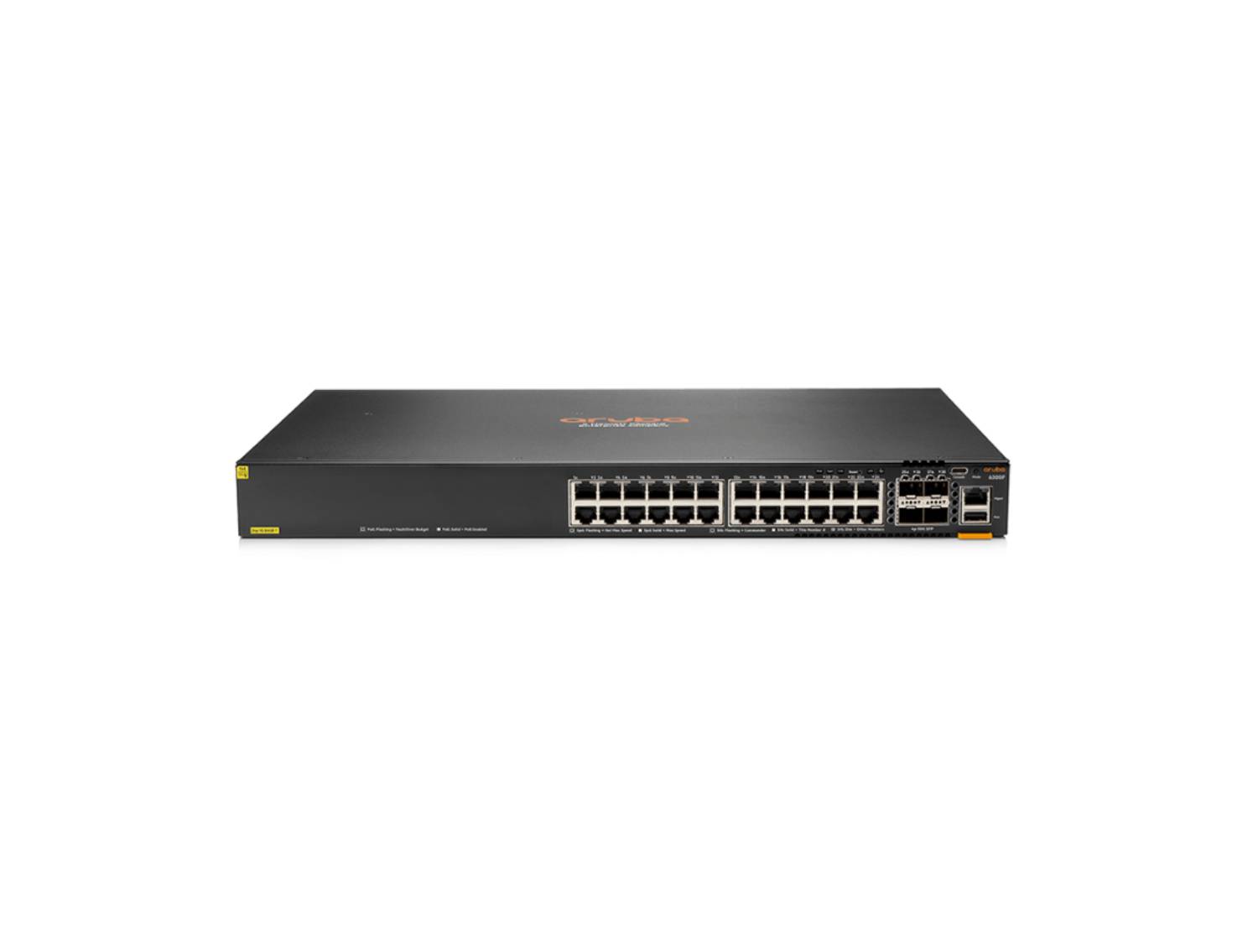

Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL666A)
