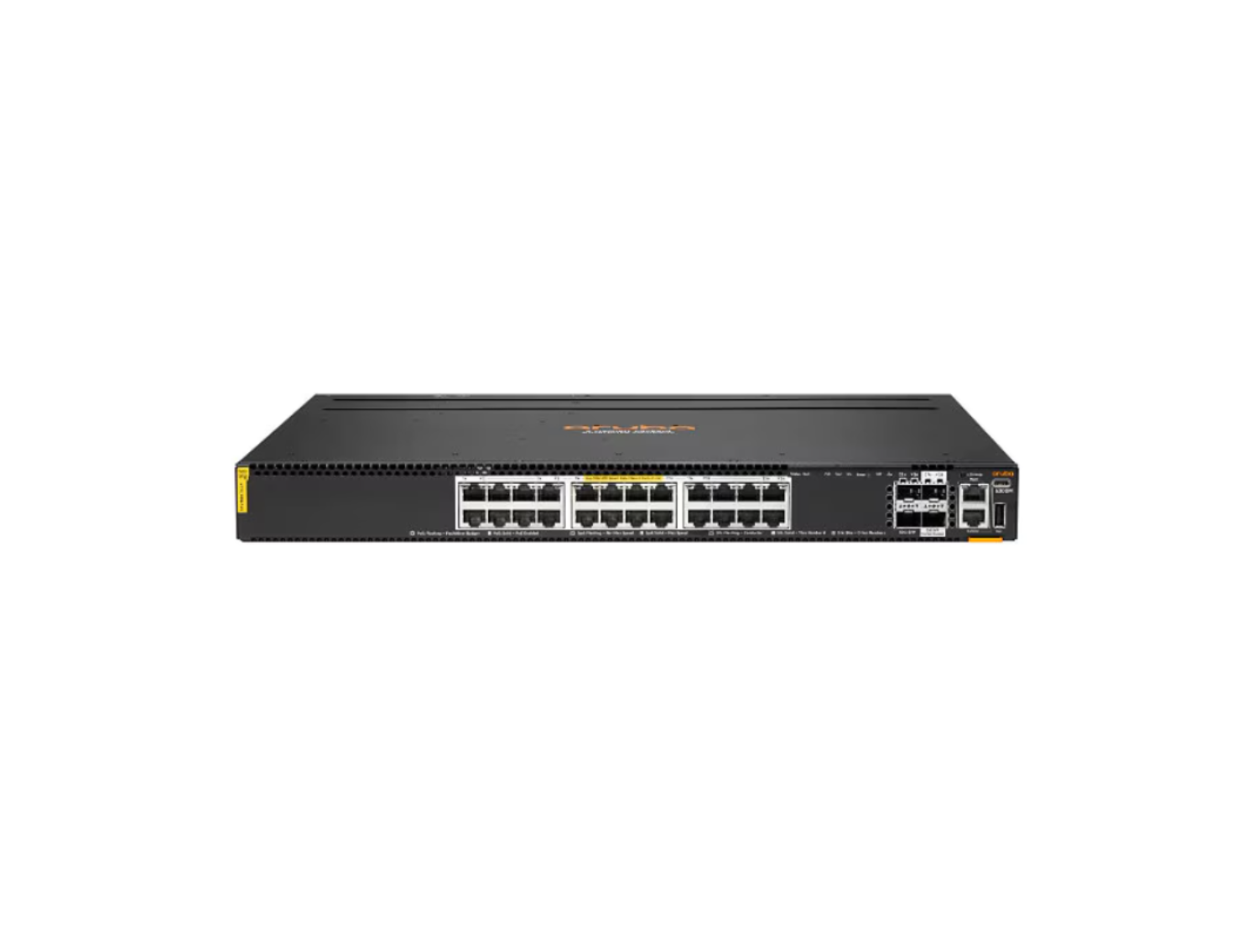

Aruba 6300M R8S89A 24‑Port 10G PoE++ & 2×50G/2×25G Uplink Layer 3 Switch

Aruba 6300M 24‑Port Smart Rate (1/2.5/5/10 GbE) Class 6 PoE + 2× 50 GbE & 2× 25 GbE UMA Switch (R8S89A)

From

Special Price $13,209.99 Regular Price $18,899.00

Home
Aruba 6300M 24‑Port Smart Rate (1/2.5/5/10 GbE) Class 6 PoE + 2× 50 GbE & 2× 25 GbE UMA Switch (R8S89A)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sale

See all specs

Have questions about this purchase?

Chat with Uvation Assistant

Ask An Expert → +1 833 631 7912 (North America)

R8S89A

Item Condition : Brand New

Earn 13,209 points when you buy me!

Hurry! Other 1 people are watching this product

SKU

HPE-A6300M-24P-SR6-POE-R8S89A

Add a Review

Be the first to review this product

Special Price $13,209.99 Regular Price $18,899.00

In stock

Hurry! Other 1 people are watching this product

High-density Layer 3 managed switch featuring 24 Smart Rate multi-gig ports (up to 10 GbE) with Class 6 PoE, plus 2× 50 GbE and 2× 25 GbE uplinks—powered by Aruba Gen7, VSF stacking, Aruba Central, and built-in analytics.

Details

High Performance and Power

The HPE Aruba Networking CX 6300 Switch Series features a fully distributed Gen7 ASIC architecture delivering low latency, enhanced packet buffering, and adaptive power use. With wire-speed switching/routing and uplinks supporting up to 100 GbE, it supports 200–400 Gbps stacking throughput.

Smart Rate multi-gig Ethernet ports (1G/2.5G/5G/10G) with Class 4/6/8 PoE provide up to 2880W, enabling high-performance connectivity for access points and IoT. Layer 2 CX 6300L variants offer scalable, cost-effective options with static routing and stackable design.

Automation and Analytics

Gain real-time visibility with built-in analytics and a Time Series Database. The Aruba Network Analytics Engine (NAE) identifies and addresses system, network, and security issues via CLI, Python, or REST API.

AI insights in Aruba Central and Multi-Edit Software help automate configuration, ensure policy compliance, and simplify change deployment. The CX Mobile App enables one-touch stacking and import for continuous conformance validation.

Unified Management and Smarter Segmentation

Aruba CX 6300 is centrally managed via Aruba Central, offering AI tools and unified control. Dynamic Segmentation enforces identity-aware policies for users, devices, and apps across wired and wireless networks.

Advanced features include Layer 7 firewall, role-based access control, application recognition, and VXLAN to VRF mapping. Colorless ports and LMA reduce manual operations and speed up network changes.

HPE Aruba Data Center Networking Solution

Integrate CX 6300 switches with HPE’s broad IT infrastructure ecosystem, including HPE ProLiant, Nimble, Synergy, and GreenLake. These switches are ideal for complex data center environments and support deployment in HCI, SAP HANA, VMware, and HPC solutions.

Pre-engineered, ready-to-deploy configurations reduce setup time, risks, and costs while enhancing IT service delivery. Use the R9FXXX tracking SKUs for integrated deployments.

Tech Specs

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Power Consumption

JL086A PSU - Hibernation: 37W, Idle: 90W, 100% Traffic: 143W
JL087A PSU - Hibernation: 41W, Idle: 90W, 100% Traffic: 140W
JL670A PSU - Hibernation: 35W, Idle: 101W, 100% Traffic: 152W

Input Voltage

JL670A PSU: 110V-120V / 208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V

Ports

24x Smart Rate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports (up to 60W per port, MACSEC)
2x 10G/25G/50G SFP ports
2x 10G/25G SFP ports (MACSEC)
1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port

Latency

1Gbps: 4.24μSec
10Gbps: 1.50μSec
25Gbps: 2.91μSec
50Gbps: 3.49μSec

Routing / Switching Capacity

Routing Capacity: 880 Gbps
Switching Capacity: 780 Gbps

Stacking Capabilities

Up to 10 switches per stack
Note: CX 6300L stacks only with CX 6300L

Throughput

580 Mpps

Memory and Processor

Quad Core Arm Cortex™ A72 @ 1.8GHz
8 GB DDR4, 32 GB eMMC
16 MB Shared Packet Buffer Memory

Power Supply

2 hot-swappable PSU slots (1 required)
Supported PSUs: JL086A, JL087A, JL670A, JL758A
Max PoE Power: 2880W

PoE Capability

Max PoE Power: 2880W
Supports IEEE 802.3af/at/bt (up to 60W per port)

Management Features

Aruba Central Network Management
Aruba AirWave
Aruba Switch Multi-Edit Software
CLI, SNMP v2c/v3, RMON

Warranty

Limited Lifetime Warranty

Product Description

CX 6300M 24p Smart Rate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE (60W/port)
2x 10G/25G/50G SFP ports
2x 10G/25G SFP ports (MACSEC)
Bluetooth dongle for CX Mobile App

Weight and Dimensions

Weight: 6.71 kg (14.8 lbs)
Dimensions: 4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)

Models

HPE Aruba Networking

HPE Aruba Networking

HPE Aruba Networking 8400Xâ€32Y 32p 1/10/25G SFP/SFP+/SFP28 Module (JL687A)

Price

13209.99
