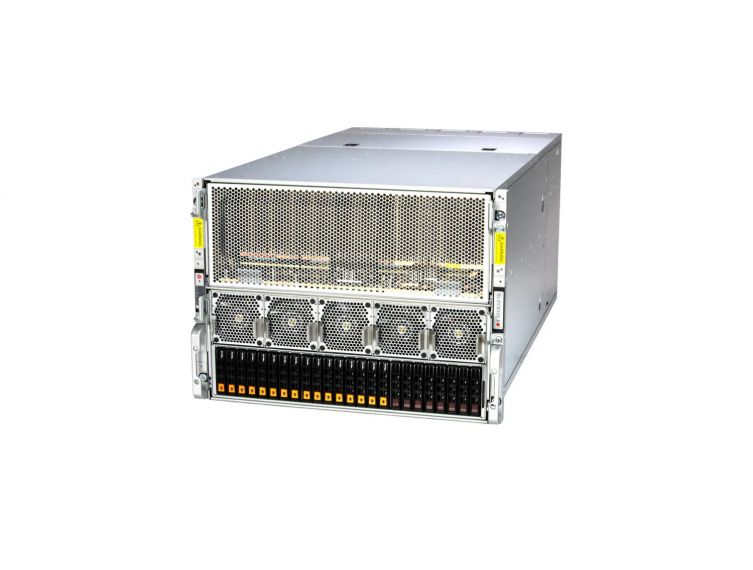

SuperMicro AS-8125GS-TNHR
Earn 248,950 points when you buy me!
• 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
• High density 8U system with Nvidia H100 HGX 80GB
• 24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM
Earn 248,950 points when you buy me!
• 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
• High density 8U system with Nvidia H100 HGX 80GB
• 24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM
Key Features
High density 8U system for NVIDIA® HGX™ H100/H200 8-GPU
Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™
8 NIC for GPU direct RDMA (1:1 GPU Ratio)
24 DIMM slots DDR5; up to 6TB 4800MT/s ECC LRDIMM/RDIMM
Up to 8 PCIe 5.0 x16 LP + 4 PCIe 5.0 x16 FHFL slots
Flexible networking options

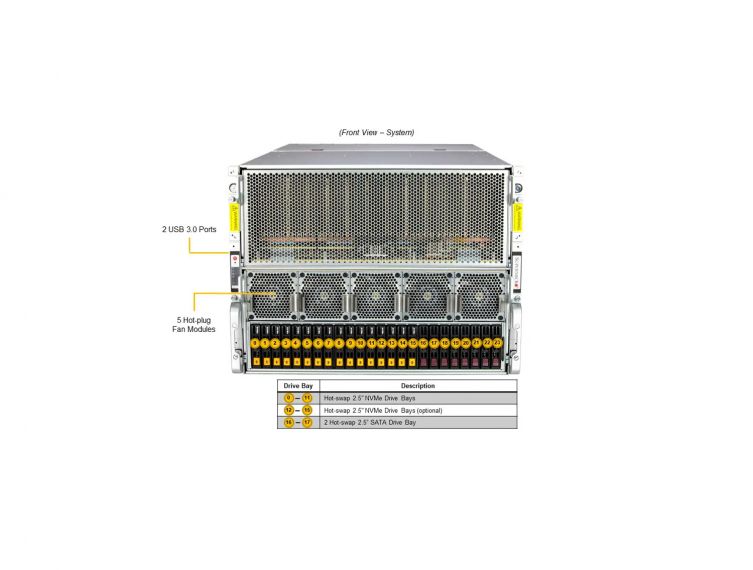

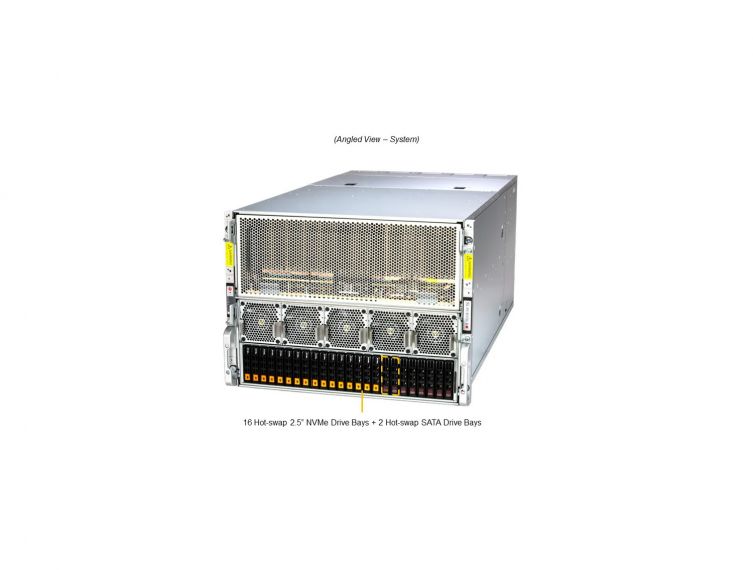

12 Hot-swap 2.5" NVMe drive bays + 2 hot-swap 2.5" SATA drive bays
+ 4 hot-swap 2.5" NVMe drive bays (optional)
1 M.2 NVMe for boot drive only
10 heavy duty fans with optimal fan speed control
6x 3000W redundant Titanium level power supplies
Key Applications
• High Performance Computing
• AI/Deep Learning Training
• Industrial Automation, Retail
• Climate and Weather Modeling
• Finance & Economics
Category | Specification |
---|---|
Product SKU | A+ Server AS-8125GS-TNHR |

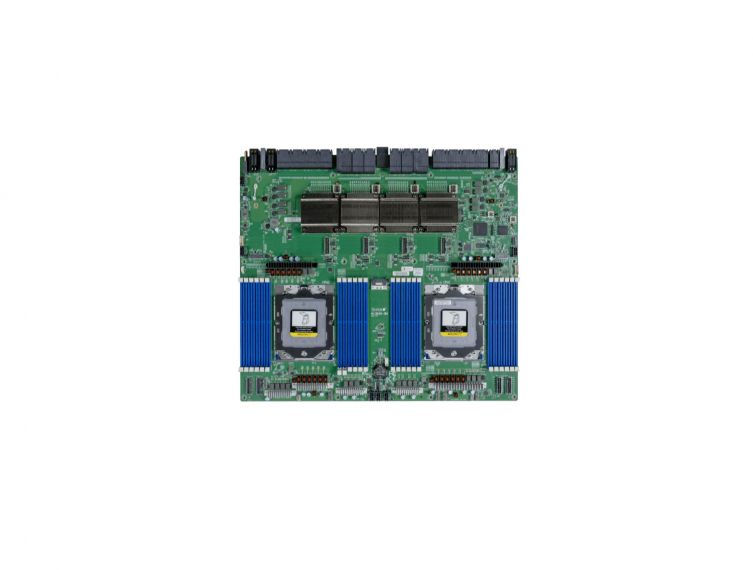

Motherboard | Super H13DSG-O-CPU-D |

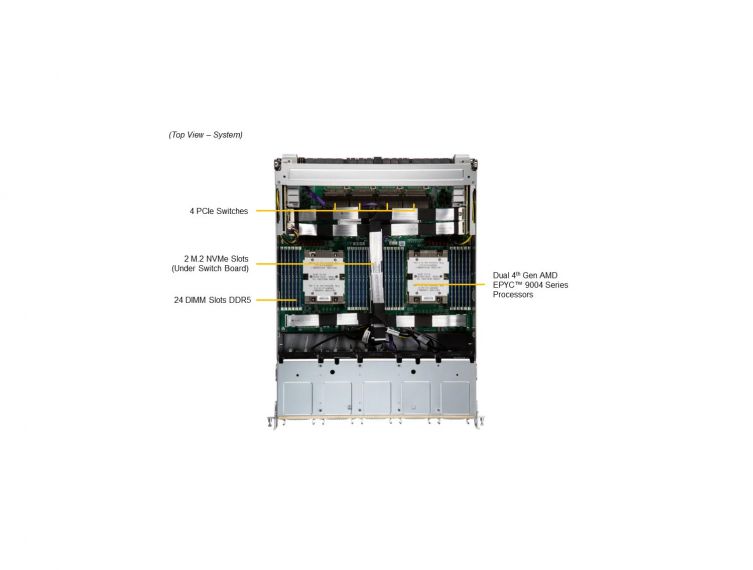

Processor | - Dual Socket SP5 |
- AMD EPYC™ 9004 Series Processors | |
- Core Count: Up to 128C/256T | |
- Supports up to 400W TDP CPUs (Air Cooled) | |
GPU | - Max GPU Count: Up to 8 onboard GPU(s) |
- Supported GPU: NVIDIA SXM (HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)) | |
- CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect | |
- GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ | |
System Memory | - Slot Count: 24 DIMM slots |
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM | |
- Memory Voltage: 1.1V | |
On-Board Devices | - Chipset: AMD SP5 |
- Network Connectivity: View AOC Options | |
Input / Output | - Video: 1 VGA port |
System BIOS | AMI 32MB SPI Flash EEPROM |
Management Software | - SuperCloud Composer |
- Supermicro Server Manager (SSM) | |
- Supermicro Update Manager (SUM) | |
- Supermicro SuperDoctor® 5 (SD5) | |
- Super Diagnostics Offline (SDO) | |
- Supermicro Thin-Agent Service (TAS) | |
- SuperServer Automation Assistant (SAA) | |
Power Configurations | - Power-on mode for AC power recovery |
- ACPI Power Management | |
Security | - Trusted Platform Module (TPM) 2.0 |
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
- Cryptographically Signed Firmware | |
- Secure Boot | |
- Secure Firmware Updates | |
- Automatic Firmware Recovery | |
- Supply Chain Security: Remote Attestation | |
- Runtime BMC Protections | |
- System Lockdown | |
PC Health Monitoring | - Monitors for CPU Cores, Chipset Voltages, Memory |
- 7 +1 Phase-switching voltage regulator | |
- Fans with tachometer monitoring | |
- Status monitor for speed control | |
- Temperature monitoring for CPU and chassis environment | |
- Thermal Control for fan connectors | |
Chassis | - Form Factor: 8U Rackmount |
- Model: CSE-GP801TS | |
Dimensions & Weight | - Height: 14" (355.6 mm) |
- Width: 17.2" (437 mm) | |
- Depth: 33.2" (843.28 mm) | |
- Package: 29.5" (H) x 27.5" (W) x 51.2" (D) | |
- Gross Weight: 225 lbs (102.1 kg) | |
- Net Weight: 166 lbs (75.3 kg) | |
- Available Color: Black front & silver body | |
Front Panel | - LED: Hard drive activity LED, Network activity LEDs, Power status LED, System Overheat & Power Fail LED |
- Buttons: Power On/Off button, System Reset button | |
Expansion Slots | - PCI-Express (PCIe) Configuration: |
- Default: 8 PCIe 5.0 x16 LP slot(s), 2 PCIe 5.0 x16 FHFL slot(s) | |
- Option A: 8 PCIe 5.0 x16 LP slot(s), 4 PCIe 5.0 x16 FHFL slot(s) | |
Drive Bays / Storage | - Drive Bays Configuration: |
- Total 18 bay(s): 2 front hot-swap 2.5" SATA drive bay(s), 4 front hot-swap 2.5" NVMe* drive bay(s), 12 front hot-swap 2.5" NVMe drive bay(s) | |
- M.2: 1 M.2 NVMe slot(s) (M-key) | |
System Cooling | 10 heavy duty fans with optimal fan speed control |

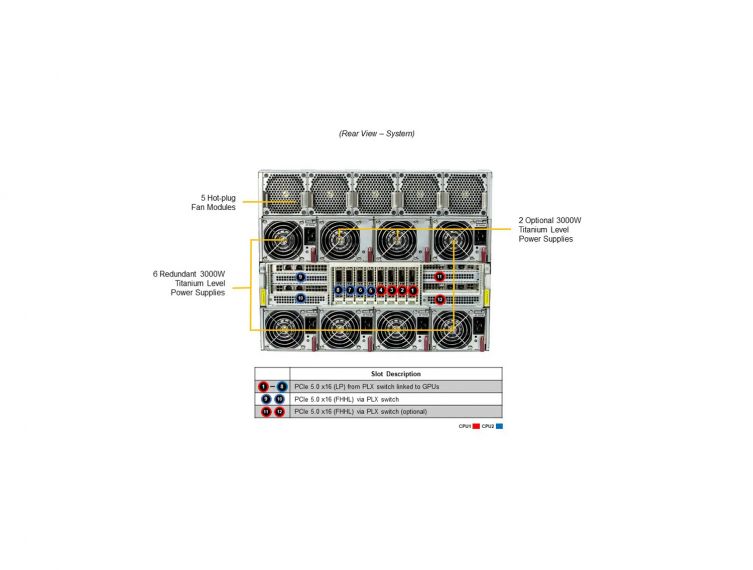

Power Supply | - 6x 3000W Redundant Titanium Level (96%) power supplies |
- Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm | |
- AC Input: 3000W: 0240Vdc / 50-60Hz (for CQC only), 2880W: 200-207Vac / 50-60Hz, 3000W: 207-240Vac / 50-60Hz | |
- +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) | |
- 12V SB: Max: 3A / Min: 0A | |
- Output Type: Backplanes (gold finger) | |
Operating Environment | - Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | |
- Operating Relative Humidity: 8% to 90% (non-condensing) | |
- Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
Environmental / Recycling | Recycle: Return Server-End of Life Product |
