• High Performance Computing
• AI/Deep Learning Training
• Large Language Model (LLM) Natural Language Processing
Key Features

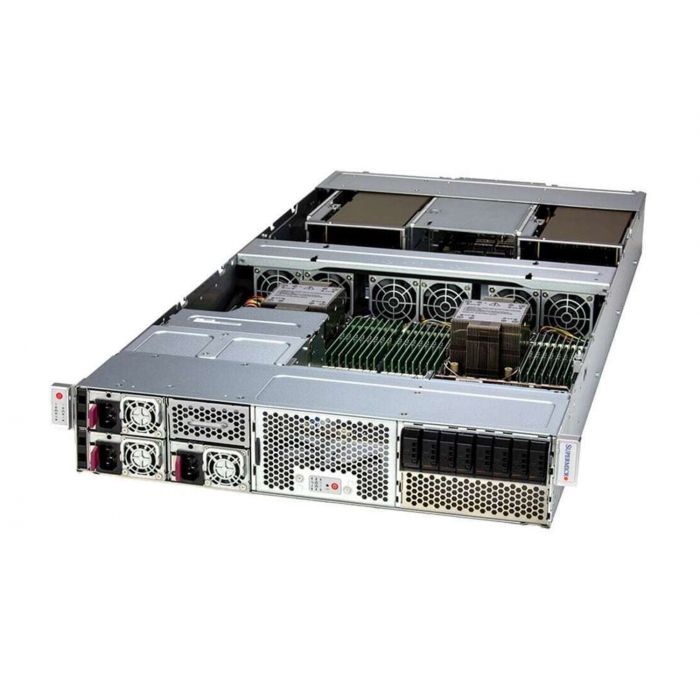

• High density 2U GPU system with up to 4 NVIDIA® H100 PCIe GPUs
• Highest GPU communication using NVIDIA® NVLINK™
• PCIe-based H100 NVL with NVLink Support
• 5th/4th Gen Intel® Xeon® Scalable processor support
• 32DIMM slots Up to 4TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
• 7 PCIe 5.0 x16 FHFL Slots
• NVIDIA BlueField-3 Data Processing Unit Support for the most demanding
• accelerated computing workloads.
• E1.S NVMe Storage Support
Key Applications
• High Performance Computing
• AI/Deep Learning Training
• Large Language Model (LLM) Natural Language Processing
| Form Factor | 2U Rackmount Enclosure: 438.4 x 88 x 900mm (17.25" x 3.46" x 35.43") Package: (22.5" x 11" x 45.5") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 56C/112T; Up to 112.5MB Cache per CPU |
| GPU | Max GPU Count: Up to 4 double-width GPU(s) Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40S CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
| System Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 |
| Drive Bays Configuration | Default: Total 8 bay(s) 8 front hot-swap E1.S NVMe drive bay(s) M.2: 2 M.2 NVMe/SATA slot(s) (M-key) |
| Expansion Slots | Default 7 PCIe 4.0 x16 FHFL slot(s) |
| On-Board Devices | Chipset: Intel® C741 Network Connectivity: 1 RJ45 1GbE |
| Input / Output | 1 mini-DP port(s) |
| System Cooling | Fans: 6 heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | 1x 2000W Redundant Titanium Level power supply |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5; Super Diagnostics Offline ; TAS: Supermicro Thin-Agent Service (TAS); SAA(new!) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) Available Color: Black front & silver body |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
